Hydraulic Puller with Hand Pump Sets

Name: Hydraulic Puller with Hand Pump Sets
Brand: Industrial Marketing & Services
Price: 45500.0 INR
Availability: InStock

Price 45500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Hydraulic Puller with Hand Pump Sets Specification

Sealing Type
High Pressure Seals

Features
Self-centering design, Reversible jaws, Quick coupling, Overload protection valve

Efficiency
High Mechanical Efficiency, Minimizes Manual Effort

Mounting Type
Portable, Free-standing, Base-mounted

Accessories
Hand pump, Hydraulic hose, Pressure gauge, Carry case, Couplers

Flow Rate
Up to 2.3 L/min (Based on hand pump)

Connectivity Type
Quick-connect Hydraulic Couplings

Operating Pressure
700 Bar (10,000 psi)

Power Source
Manual (Hand Operated)

Temperature Range
-20C to 60C

Application
Dismantling bearings, gears, bushings, pulleys, and wheels

Body Material
High-grade Alloy Steel

Type
Hydraulic Puller with Hand Pump Set

Structure
Integrated Hydraulic Cylinder with Detachable Puller Legs

Force
5-100 Ton (Depending on model)

Speed
Manual Hand Pump Operation

Usability
Suitable for Horizontal and Vertical Operation

Safety Mechanism
Integrated Pressure Relief Valve

Compliance Standard
IS, CE Certified

Number of Jaws
2 or 3 Jaws Configuration (Interchangeable)

Maximum Jaw Reach
150-400 mm (Model dependent)

Hand Pump Design
Single-stage, Ergonomic Handle

Weight
Varies from 15 kg to 35 kg (Set)

Cylinder Stroke
50-150 mm (Model dependent)

Maximum Jaw Spread
200-500 mm (Model dependent)

Surface Finish
Corrosion-resistant, Powder Coated

Hydraulic Puller with Hand Pump Sets Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA)

Supply Ability
50 Pieces Per Week

Delivery Time
4 Days

Main Domestic Market
All India

About Hydraulic Puller with Hand Pump Sets

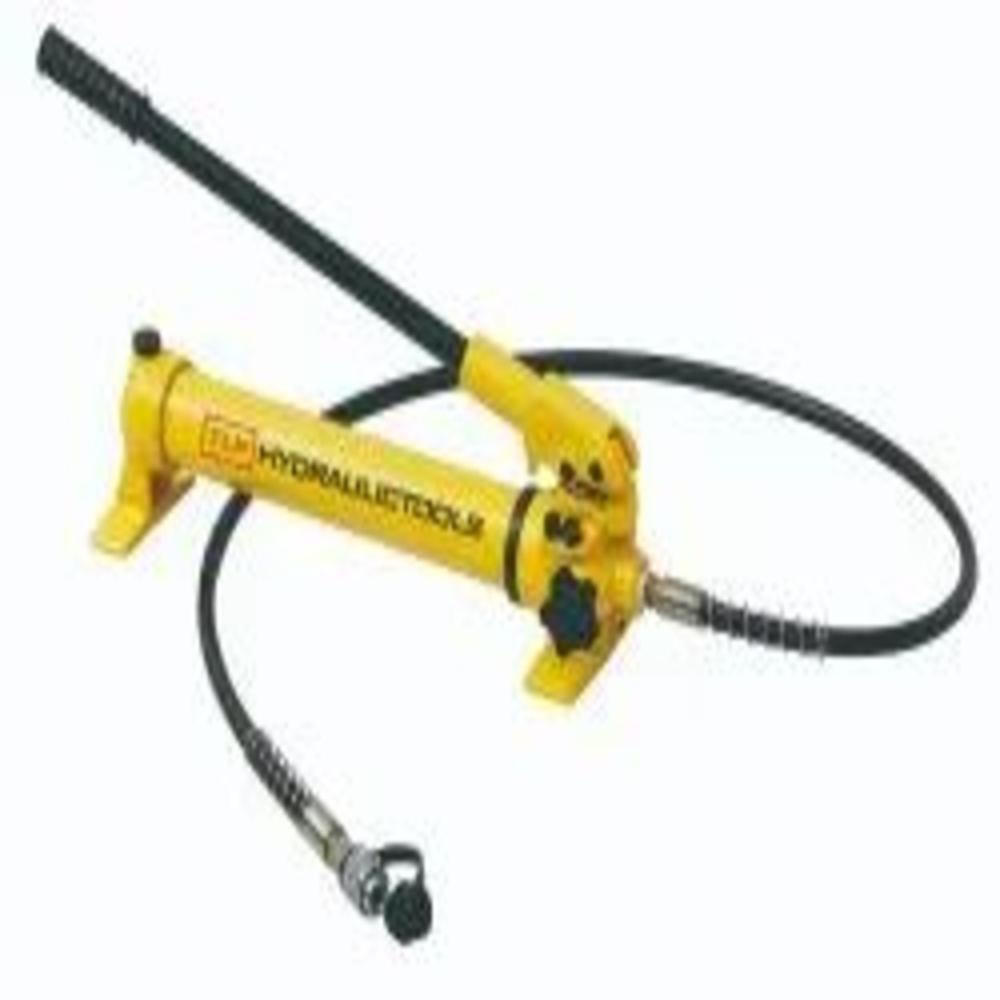

Hand Operated Hydraulic pumps Working pressure 700 Bar Features:- Two speed hydraulic system for fast and easy operation . Large lease valve handle for controlling load descent. Robust and durable construction Compact and Lightweight design for easy Carrying lower handle effort to minimize operator Fatigue

Versatility and Configurations

This hydraulic puller set is adaptable to a range of tasks thanks to its interchangeable two or three jaw setups. The jaw spread and reach accommodate varying component sizes, making it a highly flexible choice for professionals working with different machinery and parts. Each model is tailored to deliver optimal performance within its force and stroke specifications.

Robust Design and Safety Features

Manufactured from high-grade alloy steel and finished with a corrosion-resistant powder coating, the puller set stands up to harsh conditions. It features a self-centering design, reversible jaws, quick coupling mechanism, and a pressure relief valve for integrated overload protection. This ensures operator safety and durability, complying with stringent IS and CE standards.

Ease of Use and Portability

With a manual, single-stage hand pump and ergonomic handle, the set minimizes manual effort through high mechanical efficiency. Quick-connect hydraulic couplings and a portable setup-freestanding or base-mounted-allow for straightforward operation even in challenging or remote job sites. All necessary accessories are included for maximum convenience.

FAQ's of Hydraulic Puller with Hand Pump Sets:

Q: How is the number of jaws configured for different applications?

A: The hydraulic puller set comes with interchangeable two or three jaw options, allowing you to select the configuration best suited for the component you are extracting. Switching between jaws is straightforward and does not require special tools, enabling flexibility for various tasks.

Q: What safety mechanisms are incorporated in the hydraulic puller?

A: Safety is assured through an integrated pressure relief valve that prevents accidental overloading. Additionally, the puller's robust construction and high-pressure seals comply with IS and CE certification standards, ensuring operator protection and reliability during operation.

Q: When should I use a hydraulic puller with a hand pump over a mechanical puller?

A: Hydraulic pullers are preferred when you need high force-ranging from 5 to 100 tons-and wish to reduce manual effort, particularly for stubborn or large components such as bearings, pulleys, gears, or bushings. They offer higher mechanical efficiency and consistent pressure for safe, easy dismantling.

Q: Where can this hydraulic puller set be deployed?

A: Thanks to its portable, free-standing, and base-mounted options, this puller set can be used in workshops, factories, field service operations, and anywhere components require removal. Its temperature range (-20C to 60C) and corrosion-resistant finish make it well-suited for a variety of industrial environments across India.

Q: What is the process for setting up and operating the puller set?

A: Begin by selecting the appropriate jaw configuration and mounting it securely. Attach the hydraulic hose and couplers, then position the puller over the component. Use the ergonomic hand pump to apply hydraulic force, activating the self-centering and reversible jaws for efficient removal. Monitor pressure with the gauge provided, and the overload protection valve ensures safe operation.

Q: How does the hydraulic puller benefit users compared to manual alternatives?

A: Users benefit from reduced physical strain due to the manual hand pump's high mechanical efficiency. The quick-coupling system, reversible jaws, and built-in safety features expedite the removal process while minimizing risk, resulting in greater productivity and less downtime during maintenance.
