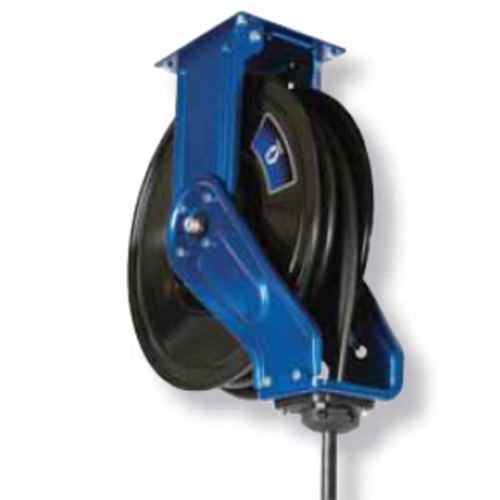

440MM Auto Retract Hose Reels

Get a Price/Quote

MOQ : 1 , , Piece

440MM Auto Retract Hose Reels Specification

Usage & Applications
Watering, cleaning, industrial washdown, automotive workshops

Model No
ARHR-30

Material
Heavy duty Polypropylene casing, reinforced rubber hose

Size
Standard

Automatic Grade
Automatic retract

Type
Auto Retract Hose Reel

Grade
Industrial

Dimension (L*W*H)
420 mm x 160 mm x 440 mm Millimeter (mm)

Noise Level
Low db

Weight
5.8 kg Kilograms (kg)

Retract Speed
Controlled slow retraction system

Working Temperature Range
-10C to +60C

Hose Pressure Rating
Up to 300 PSI

Mounting Type
Wall and ceiling mountable swivel bracket

Locking Mechanism
Multi-position hose lock

Resistance
UV and weather-resistant casing

Inlet/Outlet Size
1/2 inch BSP

440MM Auto Retract Hose Reels Trade Information

Minimum Order Quantity
1 , , Piece

Supply Ability
1 , , Piece Per Day

Delivery Time
7-50 Days

About 440MM Auto Retract Hose Reels

APPLICATION : Air, Water, Anti-freeze, Windshield, Washer Fluid, Petroleum and Syntheticbased Oils, Grease & Fuel/Evacuation

Extreme Performer in Three Sizes : XD10, XD20 & XD 30
Pressure : upto 5000 Psi
Hose Length : 9-25 m

XD Series Features

Designed for robust/heavy-duty applications such as mobile lube trucks or large equipment service, yet with a narrow footprint to fi t more reels into small spaces
Dual pedestal frame provides increased strength for extreme-duty applications
Long lasting spring is sealed for protection against the weather
Durable steel spool rides on sealed roller bearings to ensure trouble-free performance
Available in four colors. Metallic blue is standard.
Available with arms removed for bulkhead mounting*

Available in Different Colors : Metallic Blue, White, Yellow & Desert Sand

Durable Construction for Demanding Environments

Built with a heavy-duty polypropylene casing and reinforced rubber hose, the ARHR-30 hose reel is engineered to withstand industrial wear and tear. Its UV and weather-resistant housing makes it reliable for outdoor and indoor use, ensuring longevity in harsh environments. This robust design is ideal for frequent and demanding applications, providing dependable performance daily.

Effortless Operation and Safety

The ARHR-30 features a multi-position locking mechanism, brass hose end fittings, and a controlled slow retraction system. These elements combine to deliver a hassle-free and safe user experiencepreventing hose whip and allowing for easy length adjustment. The manual retract function eliminates power-related hazards, and the system operates with minimal noise, making it suitable for busy workshop conditions.

Flexible Mounting and Wide Applications

Equipped with a swivel bracket, this hose reel can be conveniently mounted on both walls and ceilings. Its versatility makes it perfect for a range of environmentsfrom industrial washdowns and automotive workshops to general cleaning. The standard 1/2 inch diameter and compact dimensions also support easy installation and integration into existing setups.

FAQs of Auto Retract Hose reels:

Q: How is the ARHR-30 Auto Retract Hose Reel installed?

A: The ARHR-30 can be mounted on either a wall or ceiling using its swivel bracket. Installation involves securely fixing the bracket in the desired location and attaching the hose reel according to the user manual. Professional installation is recommended for industrial applications.

Q: What types of applications is this hose reel suitable for?

A: This hose reel is ideal for watering, cleaning, industrial washdowns, and use in automotive workshops. Its robust construction and high pressure rating make it versatile for both commercial and industrial environments.

Q: When should I use the locking mechanism on the hose reel?

A: The multi-position hose lock should be engaged whenever you need the hose fixed at a certain length during use. This feature helps prevent accidental hose retraction and allows you to work hands-free at various distances from the reel.

Q: Where can I use the ARHR-30 hose reel outdoors?

A: Thanks to its UV and weather-resistant casing, the ARHR-30 is well-suited for outdoor locations such as gardens, factory exteriors, and open automotive service areas. The resistant materials ensure durability in all weather conditions.

Q: What is the benefit of the controlled slow retraction system?

A: The controlled slow retraction system prevents the hose from whipping back quickly, reducing the risk of injury and wear on the hose. It ensures a smooth and safe retraction, increasing the hose and reel lifespan.

Q: How does the manual retract process work?

A: To retract the hose, simply give it a gentle tug and the auto-retract system activates, winding the hose smoothly back into the reel without need for external power. The process is quiet and reliable for regular use.

Q: What are the advantages of brass hose end fittings?

A: Brass hose end fittings offer excellent durability and resistance to corrosion, ensuring a secure and long-lasting connection between the hose and accessories. This is especially beneficial in workshops and industrial environments exposed to moisture or chemicals.
